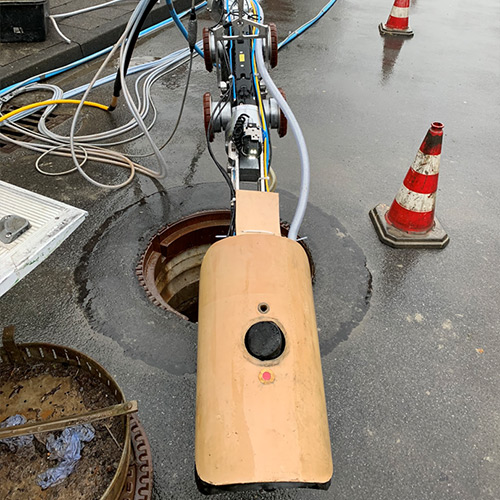

Kanaltec 4.0

Art. Nr.: HTD-90004

Lateral connection rehabilitation with Kanaltec 4.0 – for permanently leaktight sewer systems

Further properties

Kanaltec-4.0 – your innovative solution for rehabilitating sewer inlets and localized defects! Lateral connection rehabilitation, also known as nozzle or branch repair, in non-accessible wastewater pipes is an essential part of our sewer systems. After a sewer has been rehabilitated—for instance, via coating—the main pipe is 100% watertight, but the connections often remain a weak point. Improperly integrated connections can leak and allow groundwater to infiltrate—a problem we have solved with our Kanaltec 4.0 in combination with the ERGELIT-Kanaltec injection and grouting mortar. This system makes it possible to permanently rehabilitate connections and link them to the main sewer in a watertight manner. The major advantage of the ERGELIT-Kanaltec mortar lies in its unique ability to bond permanently to damp substrates and reliably fill voids behind the nozzles. The system is highly versatile and suitable for connections ranging from DN 200 to DN 800, regardless of whether they are slightly leaking or nozzles with heavy water infiltration. Even in sewers rehabilitated with a GRP CIPP liner, Kanaltec 4.0 can be used without problems and withstands long-term groundwater pressure. With this innovative system, you ensure the long-term tightness of your sewer system – reliably and effectively!
  • Application range DN 200 – DN 600 (optional DN 700 – DN 800)

  • No pre-sealing required for extraneous water (infiltration)

  • No reduction of the cross-section in the main sewer

  • Rehabilitation possible from a single manhole

  • House connections DN 80 – DN 200

  • Integrated pressure sensor detects when the defect is fully filled

  • Supply line 70m (extendable)

  • Camera monitoring and documentation via the milling robot

  • Power and air supply via the rehabilitation unit

  • Short rehabilitation duration of approx. 30-45 min

  • Water diversion in the connection area is not required

  • Short setup time of approx. 20 min

  • Operation via the existing robot system and an intuitive control panel

  • Compatible with centrally moving robot systems

Special features

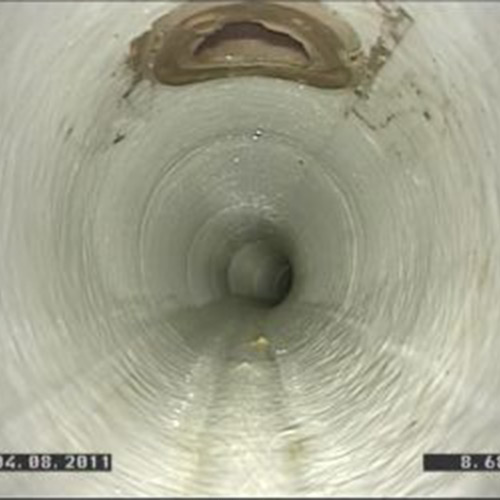

Stutzensanierung

Application
