Manhole Frame Lifter SRH07
Art. Nr.: HTD-36000
Motor-hydraulic manhole frame lifter for manhole covers with 950 mm outer and up to 800 mm inner diameter.
Further properties

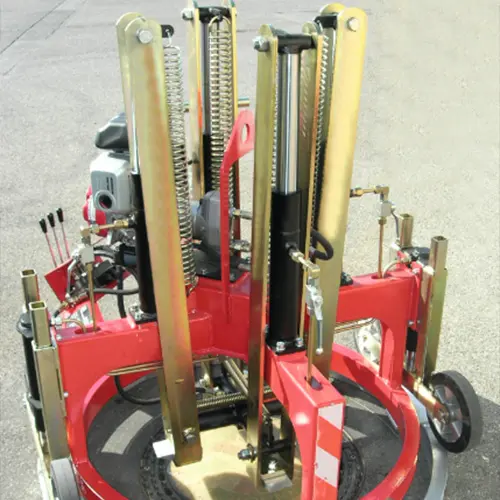

The HT-SRH07 is used for manhole frame adjustment. Unlike the hand-hydraulic SRH03, this model features a motor-hydraulic 4-arm lifter. Offering the same ease of use and a central hydraulic unit with individually lockable lifting cylinders, the HT-SRH07 ensures effortless and precise execution of adjustment tasks.
„Made in Germany“ guarantees robust and reliable performance, while a dependable supply of spare parts ensures a long service life. A reliable machine designed for professional daily and long-term use.
- Lifting height: 290 mm (Custom version: lowering depth extendable by 100 mm)
- Engine type: Air-cooled 4-stroke OHC petrol engine
- Max. output: 2.2 kW (3 HP) / 3,600 rpm
- Dimensions (L/W/H): 1,110 / 1,220 / 1,270 mm
- Inner diameter: 800 mm
- Weight: approx. 360 kg
- Made in Germany: Robust and reliable performance guaranteed
- Comprehensive accessories: Wide range of tools available for manhole frame adjustment
- Effortless operation: Designed to minimize physical strain
- Easy handling: Simple and intuitive to use
Special features
- Hand-hydraulic 4-arm lifter for comfortable and easy handling
- Separately lockable lifting cylinders – for effortless and precise execution of adjustment work
- Lifting capacity: 4 x 12 t (Total: 48 t)
Application

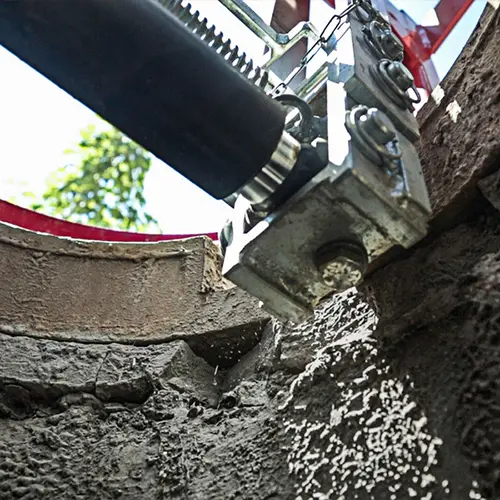

- Adjustment and rehabilitation of sunken or protruding manhole frames
- For regular work on a small to medium scale
- Suitable for lifting manhole frames to road level or for complete removal
